STAINLESS STEEL, PLASTICS, ANYTHING IS POSSIBLE

WE MANUFACTURE A LARGE VARIETY OF HIGH-QUALITY TIMING PULLEY STOCK MADE ON DEMAND, ALLOWING US TO PRODUCE VIRTUALLY AN UNLIMITED VARIETY.

All IPG pulley stock is precision machined from bar stock at our Schaumburg facility. We do not use extrusions or imported pulley stock. Pick your material, tooth profile, and any number of teeth, and we will produce it.

Our customized timing pulley stock is made on-demand, according to the specifications of the client. Are you looking for plastic or stainless steel stock or a unique grade gear commonly unavailable? Our client-oriented team is ready to comprehend your specific needs and provide innovative solutions.  Our quick turnaround time is designed for manufacturers in need of immediate, specific solutions – within a matter of days.

Browse Pulley Stock Options

Select Unit
Number of Teeth
Tooth Style
Material
Outside Diameter
Pitch Diameter
Prod. #Number of TeethTooth StyleMaterialOutside DiameterPitch Diameter
English (in)Metric (mm)
English (in)Metric (mm)
50-MXL-PS-7A50MXLAluminum
1.25331.83
1.27332.33
51-MXL-PS-7A51MXLAluminum
1.27932.49
1.29932.99
52-MXL-PS-7A52MXLAluminum
1.30433.12
1.32433.63
54-MXL-PS-7A54MXLAluminum
1.35534.42
1.37534.93
55-MXL-PS-7A55MXLAluminum
1.38135.08
1.40135.59
56-MXL-PS-7A56MXLAluminum
1.40635.71
1.42636.22
57-MXL-PS-7A57MXLAluminum
1.43136.35
1.45136.86
60-MXL-PS-8A60MXLAluminum
1.50838.30
1.52838.81
64-MXL-PS-8A64MXLAluminum
1.61040.89
1.63041.40
65-MXL-PS-8A65MXLAluminum
1.63541.53
1.65542.04
66-MXL-PS-8A66MXLAluminum
1.66142.19
1.68142.70
70-MXL-PS-8A70MXLAluminum
1.76344.78
1.78345.29
72-MXL-PS-8A72MXLAluminum
1.81346.05
1.83346.56
75-MXL-PS-8A75MXLAluminum
1.89048.01
1.91048.51
80-MXL-PS-8A80MXLAluminum
2.01751.23
2.03751.74
82-MXL-PS-8A82MXLAluminum
2.06852.53
2.08853.04
84-MXL-PS-8A84MXLAluminum
2.11953.82
2.13954.33
88-MXL-PS-8A88MXLAluminum
2.22156.41
2.24156.92
90-MXL-PS-8A90MXLAluminum
2.27257.71
2.29258.22
96-MXL-PS-8A96MXLAluminum
2.42561.60
2.44562.10
98-MXL-PS-8A98MXLAluminum
2.47662.89
2.49663.40
100-MXL-PS-8A100MXLAluminum
2.52664.16
2.54664.67
102-MXL-PS-8A102MXLAluminum
2.57765.46
2.59765.96
108-MXL-PS-8A108MXLAluminum
2.73069.34
2.75069.85
110-MXL-PS-8A110MXLAluminum
2.78170.64
2.80171.15
120-MXL-PS-8A120MXLAluminum
3.03677.11
3.05677.62
130-MXL-PS-8A130MXLAluminum
3.29083.57
3.31084.07
140-MXL-PS-8A140MXLAluminum
3.54590.04
3.56590.55
150-MXL-PS-8A150MXLAluminum
3.80096.52
3.82097.03
24-XL-PS-8A24XLAluminum
1.50838.30
1.52838.81
25-XL-PS-8A25XLAluminum
1.57239.93
1.59140.41
26-XL-PS-8A26XLAluminum
1.63541.53
1.65542.04
27-XL-PS-8A27XLAluminum
1.69943.15
1.71943.66
28-XL-PS-8A28XLAluminum
1.76344.78
1.78345.29
29-XL-PS-8A29XLAluminum
1.82646.38
1.84646.89
30-XL-PS-8A30XLAluminum
1.89048.01
1.91048.51
31-XL-PS-8A31XLAluminum
1.95449.63
1.97450.14
32-XL-PS-8A32XLAluminum
2.01751.23
2.03751.74
33-XL-PS-8A33XLAluminum
2.08152.86
2.10153.37
34-XL-PS-8A34XLAluminum
2.14554.48
2.16554.99
35-XL-PS-8A35XLAluminum
2.20856.08
2.22856.59
36-XL-PS-8A36XLAluminum
2.27257.71
2.29258.22
37-XL-PS-8A37XLAluminum
2.33559.31
2.35559.82
38-XL-PS-8A38XLAluminum
2.39960.93
2.41961.44
40-XL-PS-8A40XLAluminum
2.52664.16
2.54664.67
42-XL-PS-8A42XLAluminum
2.65467.41
2.67467.92
43-XL-PS-8A43XLAluminum
2.71769.01
2.73769.52
44-XL-PS-8A44XLAluminum
2.78170.64
2.80171.15
45-XL-PS-8A45XLAluminum
2.84572.26
2.86572.77
46-XL-PS-8A46XLAluminum
2.90873.86
2.92874.37
48-XL-PS-8A48XLAluminum
3.03677.11
3.05677.62
50-XL-PS-8A50XLAluminum
3.16380.34
3.18380.85
60-XL-PS-8A60XLAluminum
3.80096.52
3.82097.03
62-XL-PS-8A62XLAluminum
3.92799.75
3.947100.25
72-XL-PS-8A72XLAluminum
4.564115.93
4.584116.43
80-XL-PS-8A80XLAluminum
5.073128.85
5.093129.36
16-L-PS-8A16LAluminum
1.88047.75
1.91048.51
17-L-PS-8A17LAluminum
1.99950.77
2.02951.54
18-L-PS-8A18LAluminum
2.11953.82
2.14954.58
19-L-PS-8A19LAluminum
2.23856.85
2.26857.61
20-L-PS-8A20LAluminum
2.35759.87
2.38760.63
21-L-PS-8A21LAluminum
2.47762.92
2.50763.68
22-L-PS-8A22LAluminum
2.59665.94
2.62666.70
23-L-PS-8A23LAluminum
2.71568.96
2.74569.72
24-L-PS-8A24LAluminum
2.83572.01
2.86572.77
25-L-PS-8A25LAluminum
2.95575.06
2.98575.82
26-L-PS-8A26LAluminum
3.07478.08
3.10478.84
27-L-PS-8A27LAluminum
3.19481.13
3.22481.89
28-L-PS-8A28LAluminum
3.31284.12
3.34284.89
29-L-PS-8A29LAluminum
3.43287.17
3.46287.93
30-L-PS-8A30LAluminum
3.55190.20
3.58190.96
31-L-PS-8A31LAluminum
3.67293.27
3.70294.03
32-L-PS-8A32LAluminum
3.79096.27
3.82097.03
33-L-PS-8A33LAluminum
3.91199.34
3.941100.10
34-L-PS-8A34LAluminum
4.028102.31
4.058103.07
35-L-PS-8A35LAluminum
4.149105.38
4.179106.15
36-L-PS-8A36LAluminum
4.267108.38
4.297109.14
40-L-PS-8A40LAluminum
4.745120.52
4.775121.29
48-L-PS-8A48LAluminum
5.700144.78
5.730145.54
56-L-PS-8A56LAluminum
6.654169.01
6.684169.77
64-2MR-PS-8A642mm GTAluminum
1.58440.23
1.60440.74
65-2MR-PS-8A652mm GTAluminum
1.60940.87
1.62941.38
66-2MR-PS-8A662mm GTAluminum
1.63441.50
1.65442.01
70-2MR-PS-8A702mm GTAluminum
1.73444.04
1.75444.55
72-2MR-PS-8A722mm GTAluminum
1.78545.34
1.80545.85
80-2MR-PS-8A802mm GTAluminum
1.98550.42
2.00550.93
82-2MR-PS-8A822mm GTAluminum
2.03551.69
2.05552.20
84-2MR-PS-8A842mm GTAluminum
2.08552.96
2.10553.47
88-2MR-PS-8A882mm GTAluminum
2.18655.52
2.20656.03
90-2MR-PS-8A902mm GTAluminum
2.23656.79
2.25657.30
96-2MR-PS-8A962mm GTAluminum
2.38660.60
2.40661.11
100-2MR-PS-8A1002mm GTAluminum
2.48663.14
2.50663.65
102-2MR-PS-8A1022mm GTAluminum
2.53764.44
2.55764.95
108-2MR-PS-8A1082mm GTAluminum
2.68768.25
2.70768.76
110-2MR-PS-8A1102mm GTAluminum
2.73769.52
2.75770.03
120-2MR-PS-8A1202mm GTAluminum
2.98875.90
3.00876.40
130-2MR-PS-8A1302mm GTAluminum
3.23882.25
3.25882.75
140-2MR-PS-8A1402mm GTAluminum
3.48988.62
3.50989.13
150-2MR-PS-8A1502mm GTAluminum
3.74095.00
3.76095.50
160-2MR-PS-8A1602mm GTAluminum
3.992101.40
4.012101.90
42-3MR-PS-8A423mm GTAluminum
1.54939.34
1.57940.11
44-3MR-PS-8A443mm GTAluminum
1.62441.25
1.65442.01
45-3MR-PS-8A453mm GTAluminum
1.66242.21
1.69242.98
48-3MR-PS-8A483mm GTAluminum
1.77545.09
1.80545.85
50-3MR-PS-8A503mm GTAluminum
1.85046.99
1.88047.75
52-3MR-PS-8A523mm GTAluminum
1.92548.90
1.95549.66
54-3MR-PS-8A543mm GTAluminum
2.00050.80
2.03051.56
56-3MR-PS-8A563mm GTAluminum
2.07552.71
2.10553.47
60-3MR-PS-8A603mm GTAluminum
2.22656.54
2.25657.30
62-3MR-PS-8A623mm GTAluminum
2.30158.45
2.33159.21
64-3MR-PS-8A643mm GTAluminum
2.37660.35
2.40661.11
66-3MR-PS-8A663mm GTAluminum
2.45162.26
2.48163.02
68-3MR-PS-8A683mm GTAluminum
2.52764.19
2.55764.95
70-3MR-PS-8A703mm GTAluminum
2.60266.09
2.63266.85
72-3MR-PS-8A723mm GTAluminum
2.67768.00
2.70768.76
75-3MR-PS-8A753mm GTAluminum
2.79070.87
2.82671.78
80-3MR-PS-8A803mm GTAluminum
2.97875.64
3.00876.40
90-3MR-PS-8A903mm GTAluminum
3.35485.19
3.38485.95
100-3MR-PS-8A1003mm GTAluminum
3.73094.74
3.76095.50
110-3MR-PS-8A1103mm GTAluminum
4.106104.29
4.136105.05
120-3MR-PS-8A1203mm GTAluminum
4.481113.82
4.511114.58
130-3MR-PS-8A1303mm GTAluminum
4.857123.37
4.887124.13
140-3MR-PS-8A1403mm GTAluminum
5.233132.92
5.263133.68
150-3MR-PS-8A1503mm GTAluminum
5.609142.47
5.639143.23
160-3MR-PS-8A1603mm GTAluminum
5.985152.02
6.015152.78
25-5MR-PS-8A255mm GTAluminum
1.52138.63
1.56639.78
26-5MR-PS-8A265mm GTAluminum
1.58440.23
1.62941.38
27-5MR-PS-8A275mm GTAluminum
1.64741.83
1.69242.98
28-5MR-PS-8A285mm GTAluminum
1.70943.41
1.75444.55
29-5MR-PS-8A295mm GTAluminum
1.77245.01
1.81746.15
30-5MR-PS-8A305mm GTAluminum
1.83546.61
1.88047.75
31-5MR-PS-8A315mm GTAluminum
1.89748.18
1.94249.33
32-5MR-PS-8A325mm GTAluminum
1.96049.78
2.00550.93
33-5MR-PS-8A335mm GTAluminum
2.02351.38
2.06852.53
34-5MR-PS-8A345mm GTAluminum
2.08552.96
2.13054.10
35-5MR-PS-8A355mm GTAluminum
2.14854.56
2.19355.70
36-5MR-PS-8A365mm GTAluminum
2.21156.16
2.25657.30
38-5MR-PS-8A385mm GTAluminum
2.33659.33
2.38160.48
40-5MR-PS-8A405mm GTAluminum
2.46162.51
2.50663.65
42-5MR-PS-8A425mm GTAluminum
2.58765.71
2.63266.85
44-5MR-PS-8A445mm GTAluminum
2.71268.88
2.75770.03
45-5MR-PS-8A455mm GTAluminum
2.77570.49
2.82071.63
46-5MR-PS-8A465mm GTAluminum
2.83772.06
2.88273.20
48-5MR-PS-8A485mm GTAluminum
2.96375.26
3.00876.40
50-5MR-PS-8A505mm GTAluminum
3.08878.44
3.13379.58
54-5MR-PS-8A545mm GTAluminum
3.33984.81
3.38485.95
56-5MR-PS-8A565mm GTAluminum
3.46487.99
3.50989.13
60-5MR-PS-8A605mm GTAluminum
3.71594.36
3.76095.50
62-5MR-PS-8A625mm GTAluminum
3.84097.54
3.88598.68
65-5MR-PS-8A655mm GTAluminum
4.028102.31
4.073103.45
72-5MR-PS-8A725mm GTAluminum
4.466113.44
4.511114.58
80-5MR-PS-8A805mm GTAluminum
4.968126.19
5.013127.33
90-5MR-PS-8A905mm GTAluminum
5.594142.09
5.639143.23
100-5MR-PS-8A1005mm GTAluminum
6.221158.01
6.266159.16
112-5MR-PS-8A1125mm GTAluminum
6.973177.11
7.018178.26
126-5MR-PS-8A1265mm GTAluminum
7.850199.39
7.895200.53
25-5mm-PS-8A255m HTDAluminum
1.52138.63
1.56639.78
26-5mm-PS-8A265m HTDAluminum
1.58440.23
1.62941.38
27-5mm-PS-8A275m HTDAluminum
1.64741.83
1.69242.98
28-5mm-PS-8A285m HTDAluminum
1.70943.41
1.75444.55
29-5mm-PS-8A295m HTDAluminum
1.77245.01
1.81746.15
30-5mm-PS-8A305m HTDAluminum
1.83546.61
1.88047.75
31-5mm-PS-8A315m HTDAluminum
1.89748.18
1.94249.33
32-5mm-PS-8A325m HTDAluminum
1.96049.78
2.00550.93
33-5mm-PS-8A335m HTDAluminum
2.02351.38
2.06852.53
34-5mm-PS-8A345m HTDAluminum
2.08552.96
2.13054.10
35-5mm-PS-8A355m HTDAluminum
2.14854.56
2.19355.70
36-5mm-PS-8A365m HTDAluminum
2.21156.16
2.25657.30
38-5mm-PS-8A385m HTDAluminum
2.33659.33
2.38160.48
40-5mm-PS-8A405m HTDAluminum
2.46162.51
2.50663.65
42-5mm-PS-8A425m HTDAluminum
2.58765.71
2.63266.85
44-5mm-PS-8A445m HTDAluminum
2.71268.88
2.75770.03
45-5mm-PS-8A455m HTDAluminum
2.77570.49
2.82071.63
46-5mm-PS-8A465m HTDAluminum
2.83772.06
2.88273.20
48-5mm-PS-8A485m HTDAluminum
2.96375.26
3.00876.40
50-5mm-PS-8A505m HTDAluminum
3.08878.44
3.13379.58
54-5mm-PS-8A545m HTDAluminum
3.33984.81
3.38485.95
56-5mm-PS-8A565m HTDAluminum
3.46487.99
3.50989.13
60-5mm-PS-8A605m HTDAluminum
3.71594.36
3.76095.50
62-5mm-PS-8A625m HTDAluminum
3.84097.54
3.88598.68
65-5mm-PS-8A655m HTDAluminum
4.028102.31
4.073103.45
72-5mm-PS-8A725m HTDAluminum
4.466113.44
4.511114.58
80-5mm-PS-8A805m HTDAluminum
4.968126.19
5.013127.33
90-5mm-PS-8A905m HTDAluminum
5.594142.09
5.639143.23
100-5mm-PS-8A1005m HTDAluminum
6.221158.01
6.266159.16
112-5mm-PS-8A1125m HTDAluminum
6.973177.11
7.018178.26
126-5mm-PS-8A1265m HTDAluminum
7.850199.39
7.895200.53
15-AT10-PS-8A15AT10Aluminum
1.80745.90
1.87847.70
16-AT10-PS-8A16AT10Aluminum
1.93149.05
2.00450.90
17-AT10-PS-8A17AT10Aluminum
2.05752.25
2.13054.10
18-AT10-PS-8A18AT10Aluminum
2.18355.45
2.25257.20
19-AT10-PS-8A19AT10Aluminum
2.30758.60
2.37860.40
20-AT10-PS-8A20AT10Aluminum
2.43361.80
2.50463.60
21-AT10-PS-8A21AT10Aluminum
2.55965.00
2.63066.80
22-AT10-PS-8A22AT10Aluminum
2.68368.15
2.75670.00
23-AT10-PS-8A23AT10Aluminum
2.80971.35
2.88273.20
24-AT10-PS-8A24AT10Aluminum
2.93574.55
3.00476.30
25-AT10-PS-8A25AT10Aluminum
3.05977.70
3.13079.50
26-AT10-PS-8A26AT10Aluminum
3.18580.90
3.25682.70
27-AT10-PS-8A27AT10Aluminum
3.31184.10
3.38285.90
28-AT10-PS-8A28AT10Aluminum
3.43587.25
3.50889.10
29-AT10-PS-8A29AT10Aluminum
3.56190.45
3.63492.30
30-AT10-PS-8A30AT10Aluminum
3.68793.65
3.75695.40
31-AT10-PS-8A31AT10Aluminum
3.81196.80
3.88298.60
32-AT10-PS-8A32AT10Aluminum
3.937100.00
4.008101.80
33-AT10-PS-8A33AT10Aluminum
4.063103.20
4.134105.00
34-AT10-PS-8A34AT10Aluminum
4.189106.40
4.260108.20
35-AT10-PS-8A35AT10Aluminum
4.313109.55
4.382111.30
36-AT10-PS-8A36AT10Aluminum
4.439112.75
4.508114.50
37-AT10-PS-8A37AT10Aluminum
4.563115.90
4.634117.70
38-AT10-PS-8A38AT10Aluminum
4.689119.10
4.760120.90
40-AT10-PS-8A40AT10Aluminum
4.939125.45
5.012127.30
41-AT10-PS-8A41AT10Aluminum
5.065128.65
5.134130.40
42-AT10-PS-8A42AT10Aluminum
5.191131.85
5.260133.60
44-AT10-PS-8A44AT10Aluminum
5.441138.20
5.512140.00
45-AT10-PS-8A45AT10Aluminum
5.567141.40
5.638143.21
46-AT10-PS-8A46AT10Aluminum
5.691144.55
5.764146.41
48-AT10-PS-8A48AT10Aluminum
5.943150.95
6.012152.70
50-AT10-PS-8A50AT10Aluminum
6.193157.30
6.264159.11
51-AT10-PS-8A51AT10Aluminum
6.319160.50
6.390162.31
52-AT10-PS-8A52AT10Aluminum
6.443163.65
6.516165.51
54-AT10-PS-8A54AT10Aluminum
6.695170.05
6.764171.81
55-AT10-PS-8A55AT10Aluminum
6.819173.20
6.890175.01
56-AT10-PS-8A56AT10Aluminum
6.945176.40
7.016178.21
57-AT10-PS-8A57AT10Aluminum
7.071179.60
7.142181.41
58-AT10-PS-8A58AT10Aluminum
7.195182.75
7.268184.61
59-AT10-PS-8A59AT10Aluminum
7.321185.95
7.390187.71
60-AT10-PS-8A60AT10Aluminum
7.445189.10
7.516190.91
62-AT10-PS-8A62AT10Aluminum
7.697195.50
7.768197.31
70-AT10-PS-8A70AT10Aluminum
8.699220.95
8.768222.71
75-AT10-PS-8A75AT10Aluminum
9.327236.91
9.398238.71
12-T10-PS-8A12T10Aluminum
1.43136.35
1.51038.35
13-T10-PS-8A13T10Aluminum
1.55539.50
1.63441.50
14-T10-PS-8A14T10Aluminum
1.68142.70
1.76044.70
15-T10-PS-8A15T10Aluminum
1.80745.90
1.88647.90
16-T10-PS-8A16T10Aluminum
1.93149.05
2.01051.05
17-T10-PS-8A17T10Aluminum
2.05752.25
2.13654.25
18-T10-PS-8A18T10Aluminum
2.18355.45
2.26257.45
19-T10-PS-8A19T10Aluminum
2.30758.60
2.38660.60
20-T10-PS-8A20T10Aluminum
2.43361.80
2.51263.80
21-T10-PS-8A21T10Aluminum
2.55965.00
2.63867.01
22-T10-PS-8A22T10Aluminum
2.68368.15
2.76270.15
23-T10-PS-8A23T10Aluminum
2.80971.35
2.88873.36
24-T10-PS-8A24T10Aluminum
2.92774.35
3.01476.56

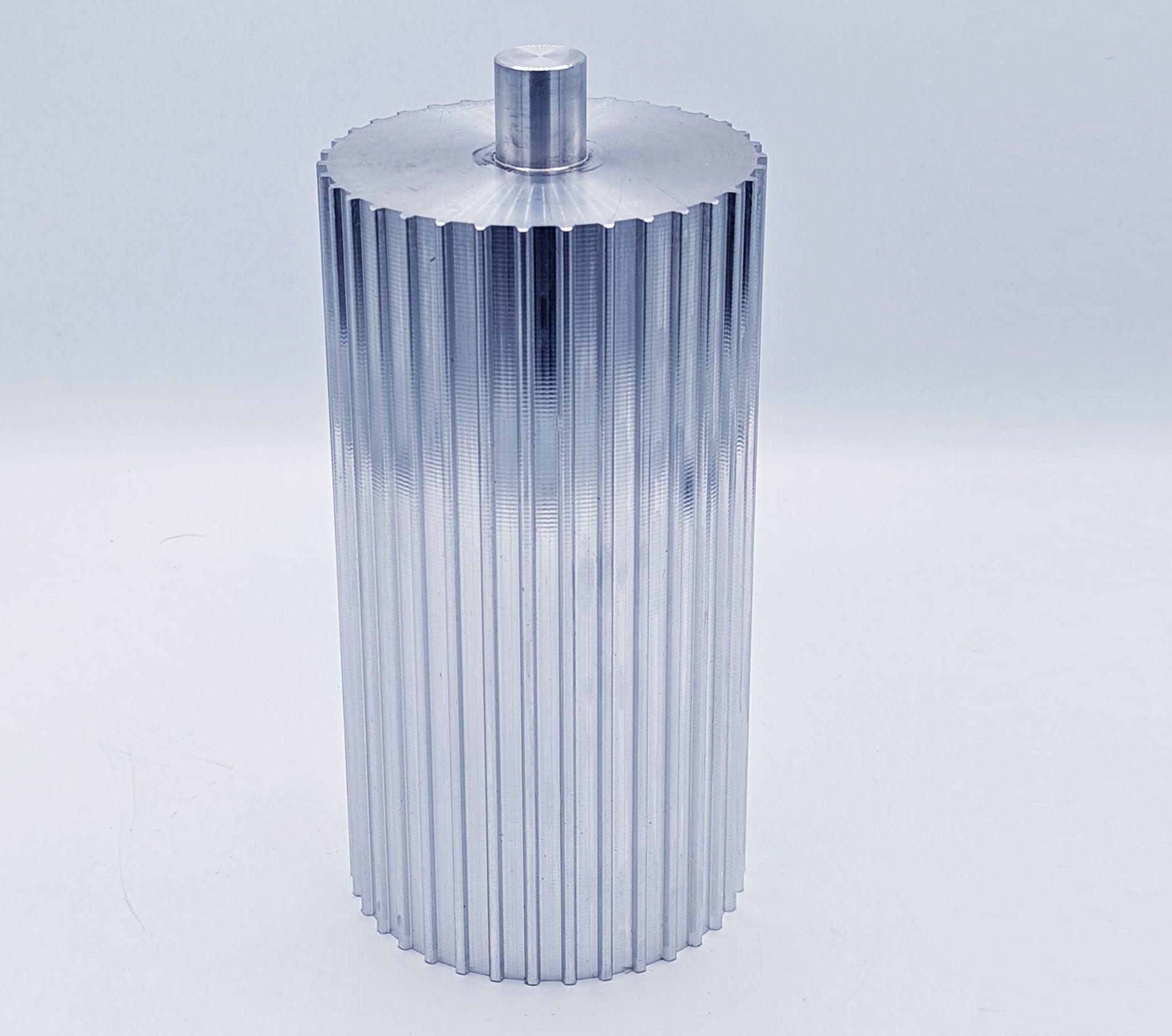

26-T10-PS-8A26T10Aluminum
3.18580.90
3.26482.91
28-T10-PS-8A28T10Aluminum
3.43587.25
3.51489.26
30-T10-PS-8A30T10Aluminum
3.68793.65
3.76695.66
32-T10-PS-8A32T10Aluminum
3.937100.00
4.016102.01
34-T10-PS-8A34T10Aluminum
4.189106.40
4.268108.41
36-T10-PS-8A36T10Aluminum
4.439112.75
4.518114.76
38-T10-PS-8A38T10Aluminum
4.689119.10
4.768121.11
40-T10-PS-8A40T10Aluminum
4.939125.45
5.018127.46
45-T10-PS-8A45T10Aluminum
5.567141.40
5.646143.41
48-T10-PS-8A48T10Aluminum
5.943150.95
6.022152.96
60-T10-PS-8A60T10Aluminum
7.445189.10
7.524191.11
72-T10-PS-8A72T10Aluminum
8.948227.28
9.027229.29

Timing Pulley Stock Product Summary

Timing pulley stock is the standard material used to create custom timing pulleys. Stock is often utilized for prototyping, experimentation, or crafting replacement parts.

Materials

Common materials available for pulley stock include, but are not limited to:

Aluminum – Grades 6061, 2024, 7075
Steel – Grades 1215, 1144, 1045, 4140
Stainless Steel – Grades 303, 304, 316, 17–4 PH
Plastics – Nylon, Delrin, UHMW

Material certifications are available upon request.

Available Tooth Profiles:

  • MXL (.080)
  • XL (.200)
  • L (.375)
  • H (.500)
  • XH (.875)
  • 2mm GT2
  • 3mm GT2
  • 5mm GT2
  • 8mm GT2
  • 14mm GT2
  • 3mm HTD
  • 5mm HTD
  • 8mm HTD
  • 14mm HTD
  • T5
  • AT5
  • T10
  • AT10

AT and T profiles are available in Zero Backlash upon request, as are other pitches.

Why Choose Illinois Pulley & Gear?

At IPG, we promise uncompromised service. Our team is dedicated to every client, readily available to connect over the phone, help solve problems, and answer questions. As a client-oriented company, we are ready to listen well, comprehend needs, work through issues, and provide innovative solutions. Our team is flexible to accommodate your requirements. Place blanket orders for the entire year or order as needed – we are ready to meet your specific needs.

At IPG, every product is USA-made to order. You will always receive the highest-quality product, made according to standard or custom specifications.

  • Illinois Pulley & Gear has provided precision machining services for us for over 5 years.  They have been consistently reliable, professional, and flexible from quoting to manufacturing and delivery.
    Eric BroseProject Manager, Technico Precision Manufacturing, Inc.
  • Illinois Pulley and Gear has been amazing to work with. They produce high-quality, custom parts, and they know their business.
    MattProject Manager,

Get in Touch

Need Help? We’re Here For You.

We'd love to create custom products for you.

Contact
